Pro-XMv2 Extrusion Welder
High output mini extrusion welder for production welding of geomembranes and rigid thermoplastics.

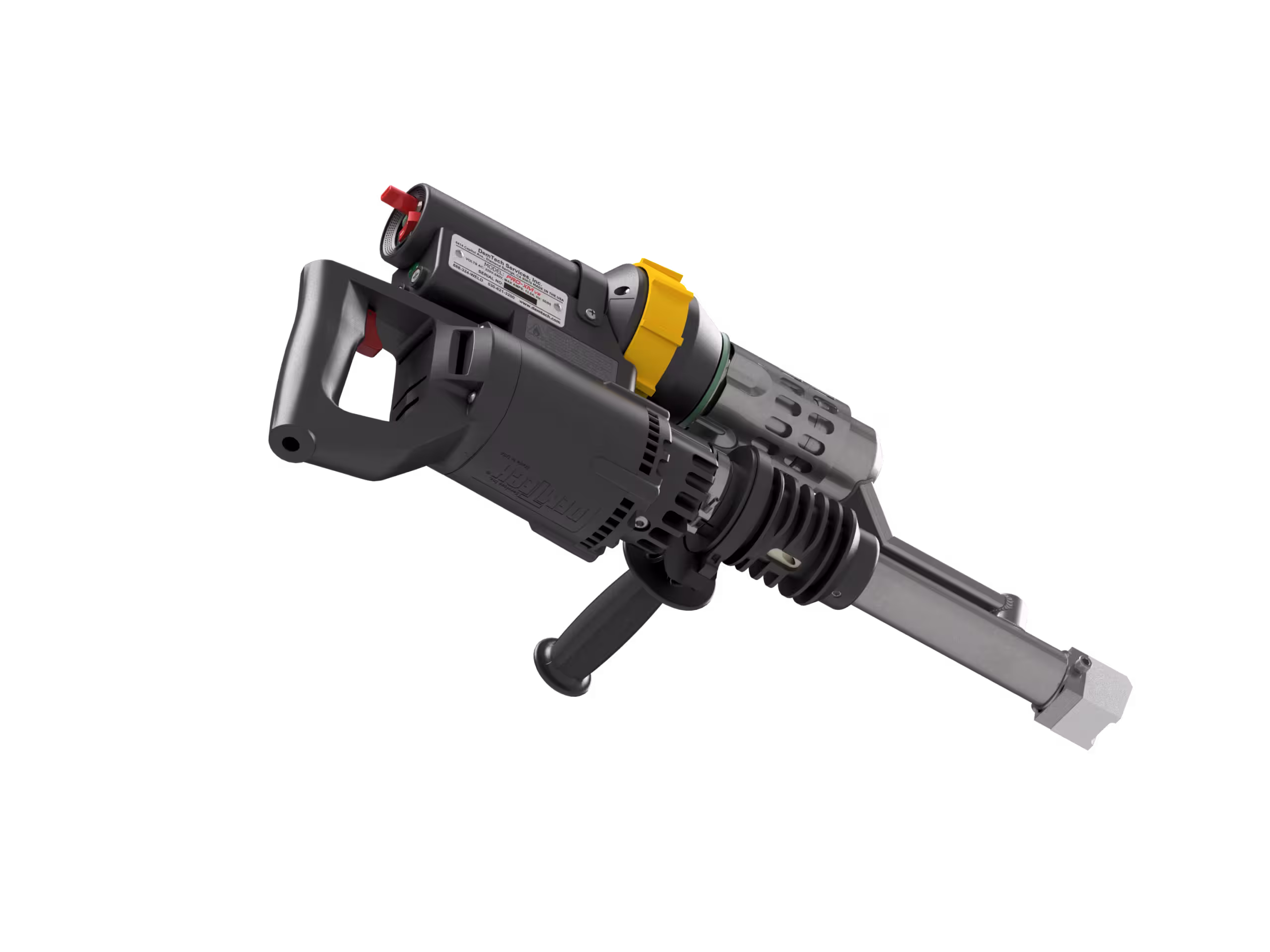

The PRO-XMv2 Extrusion Welder, manufactured by DEMTECH Services, Inc., is the standard of the industry extrusion welder for detail and a high output mini extruder for production welding of thermoplastic liners, pipe, rigid sheet stock, as well as many other plastic welding applications.
- The drive motor has been upgraded to a powerful DemTech brand drive motor resulting in a 20% higher plastic output
- Simple heating system design. No electronic controls
- Electronic "cold start" protection prevents starting of motor before minimum operating temperature is reached
- Reliable Demtech pre-heat air unit maintains accurate temperature and high air flow.
- Ergonomic handle adjusts easily to different positions for right-handed or left-handed operation
- Comes with its own two-piece stand to keep the equipment off the liner
- Easy access for changing brushes in the field
- Custom, proprietary barrel and screw designed and manufactured by DemTech
- Non-Twisting rod feed design makes it easier to manage welding rod
- Works with 4 and 5mm rod
- Welding shoes are available in Demtech's pre-machined designs
- Two welding shoes included with purchase: Standard overlap and inside corner (TS-605-60/A, TS-605-0500/A)
- Lightweight... High output... Reliable... Affordable
- Made in the USA and built to last!
Inventory ID:
Pro-XMv2 Extrusion Welder
Part Number:
XM-82999
Welder Weight:
16.5 lbs. (7.5 kilos)
Shipping Weight:
50.5 lbs. (22.9 kilos)
Dimensions:
25 X 4.5 X 11.5” (63.5 X 11.4 X 29.2 cm)
Rod Size:
4mm or 5mmOutput with 4mm:
4.5 lbs. (2 kilos) per hour
Output with 5mm:
7 lbs. (3.2 kilos) per hour
Material Range:
PVCPPPEWelding Range:
40 mil to 2" (1.0 to 50 mm) thicknessVoltage:
230 VAC, Single Phase
Consumption:
3150W, 13.6 Amps @ 230VAC Sturdy
Packaging:
Molded case w/ foam insert
